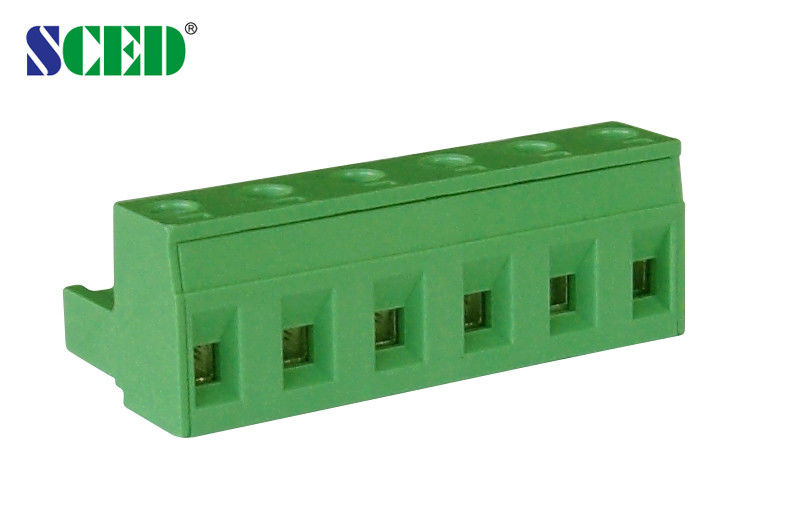

Single Level Pluggable Terminal Blocks , Pitch 7.62mm Brass Female Connector
-
Podkreślić
Pluggable Single Level Terminal Blocks
,Single Level Brass Female Connector
,Pitch 7.62mm Brass Female Connector
-
KolorZielony
-
Poziom7,62 mm
-
TypWłączać do kontaktu
-
Aktualny8A
-
Woltaż300 V.
-
Biegunki2-24 Polaków
-
Materiał izolacyjnyPA66
-
ŚrubaM2
-
Moment obrotowy2-2,2 lbf.in
-
Klatka zaciskowaMosiądz
-
Miejsce pochodzeniaChiny
-
Nazwa handlowaSCED
-
OrzecznictwoCE,UL
-
Numer modeluTP508P-76
-
Minimalne zamówienie1000 sztuk / sztuk
-
CenaUSD 0.06-0.12 PER Pole
-
Szczegóły pakowaniaStandardowy karton do pakowania eksportowego lub zgodnie z zapotrzebowaniem klientów.
-
Czas dostawy5-20 dni roboczych
-
Zasady płatnościT/T, akredytywa
-
Możliwość Supply1000000 Polaka/Polaków miesięcznie
Single Level Pluggable Terminal Blocks , Pitch 7.62mm Brass Female Connector
Green Color Plug In Terminal Block Brass Female Connectors Pitch 7.62mm
Detailed product Description:
Plug, Female, Pitch: 7.62mm, 300V 18A, 2P-16P, Pluggable Terminal Blocks, Plug-in Terminal Blocks
This female plug match with male sockets’ series: TP508H-76, TP508H-76V, TP508H-77, TP508H-77V
Levels: ■Single Level
Standard color: Green.
Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Industry Control, Automation, Communication, Electric Power, Security, Medical Equipment, Military and so on.
Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300 / 18 | 300 / 18 | |
| Wire Range AWG | 12-30 | 12-30 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 400 / 18 | 630 / 18 | 1000 / 18 |
| Rated Surge Voltage KV | 6 | 6 | 6 |
| Rated Connecting Capacity mm2 | 2.5 | ||
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Clamp Cage / Plating | Brass / Nickel Plated | ||
| Terminal / Plating | Phosphor Bronze / Tin Plated | ||
| Screw / Plating | Steel / Zinc Plated | ||
| Other Data | |||
| Stripping Length mm | 7 | ||
| Screw / Torque / lbf.in | M3 / 4.4-5.3 | ||
Competitive Advantage:
- High quality
- Reasonable price
- Full range products for selection
- Flexible to design the exact part per customers’ demand
