Feed Through 180A Panel Mount Terminal Block 21mm Perforation With Plastic Cover
-
Podkreślić
Panel Mount Server Site Terminal Block
,Panel Mount Perforation Terminal Block
,Feed Through 21mm Terminal Block
-
Poziom21 mm
-
Aktualny180A
-
Woltaż300 V.
-
ŚrubaM6
-
Moment obrotowy20-22 lbf.in
-
plastikowyPBT
-
Materiał izolacyjnyUL94-V0
-
Długość usuwania14-18mm
-
Zakres drutu20-1/0 AWG
-
Płyta przewodzącaMiedź
-
Miejsce pochodzeniaGuangdong, Chiny
-
Nazwa handlowaSCED
-
OrzecznictwoCE,UL,CUL,CQC and VDE etc.
-
Numer modeluTD180-01-C
-
Minimalne zamówienie1000 sztuk / sztuk
-
CenaUSD 1.143-2.286 Per Pole
-
Szczegóły pakowaniaSzczegóły opakowania: Standardowy karton do pakowania eksportowego lub zgodnie z wymaganiami klientó
-
Czas dostawy5-20 dni roboczych
-
Zasady płatnościT/T, akredytywa
-
Możliwość Supply1000000 Polaka/Polaków miesięcznie

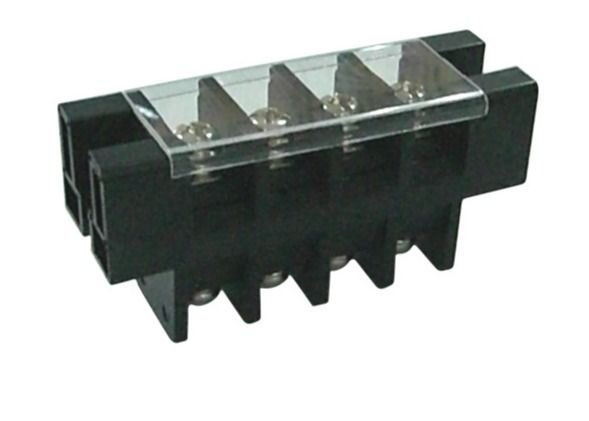

Feed Through 180A Panel Mount Terminal Block 21mm Perforation With Plastic Cover
180A Panel Mount Terminal Block 21mm Perforation Feed Through with Plastic Cover
Detailed product Description:
Pitch 21.0mm, 600V 180A, Any poles available, Perforation Terminal Blocks, Through Panel Terminal Connectors
■ Single Deck; □Double decks; □Triple decks
Standard color: Black.
Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

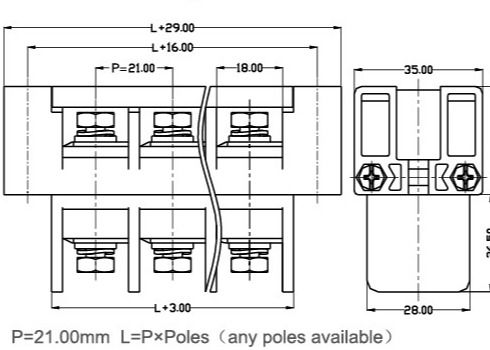

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300 / 180 | 300 / 180 | 300 / 10 |
| Wire Range AWG | 20-1/0 | 20-1/0 | 4-20 |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 630 / 180 | 800 / 180 | 1000 / 180 |
| Rated Surge Voltage KV | 6 | 6 | 6 |
| Rated Connecting Capacity mm2 | 8 | ||
| Material | |||
| Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
| Conduction Board / Plating | Copper / Nickel Plated | ||
| Screw / Plating | Steel / Zinc Plated | ||
| Other Data | |||
| Stripping Length mm | 14-18 | ||
| Screw / Torque / lbf.in | M6 / 20-22 | ||
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
