285A Through Panel quick connect terminal block 30mm 1-24 Poles Grey Bulkhead Connectors
-
Podkreślić
wiring terminal block
,feed through terminal blocks
-
Poziom30mm
-
Aktualny285A
-
Biegunki1-24
-
Woltaż600V
-
ŚrubaM10
-
Moment obrotowy50-60 funtów siły na cal
-
Materiał izolacyjnyPA66
-
KolorSzary
-
Płyta przewodzącaMiedź
-
Długość usuwania26 mm
-
Miejsce pochodzeniaChiny
-
Nazwa handlowaSCED
-
OrzecznictwoUL,CE,CUL,CQC and VDE etc.
-
Numer modeluTR-150N-03F
-
Minimalne zamówienie500 sztuk/sztuk
-
CenaUSD 2.546-5.079 PER POLE
-
Szczegóły pakowaniaWymiary standardowego kartonu zbiorczego: 341 x 273 x 198 mm; Standardowy wymiar pudełka wewnętrzneg
-
Czas dostawy5-20 dni roboczych
-
Zasady płatnościT/T, akredytywa
-
Możliwość Supply1000000 Polaka/Polaków miesięcznie

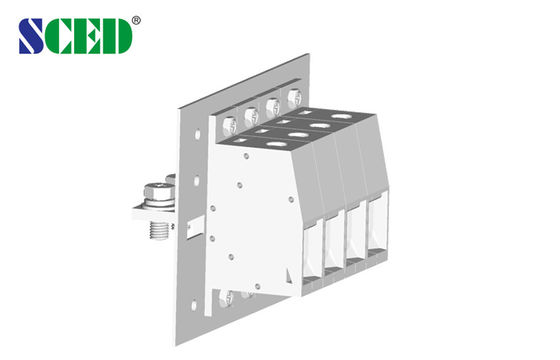

285A Through Panel quick connect terminal block 30mm 1-24 Poles Grey Bulkhead Connectors
285A Through Panel quick connect terminal block 30mm 1-24 Poles Grey Bulkhead Connectors
Detailed product Description:
Pitch 30.0mm, 600V 285A, 1P-24P, Through Panel Terminal Blocks / Feed-Through Terminal Blocks / Bulkhead connectors
Wire Inlet: ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
Decks: ■Single Deck; □Double decks; □Triple decks
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.
How to order:

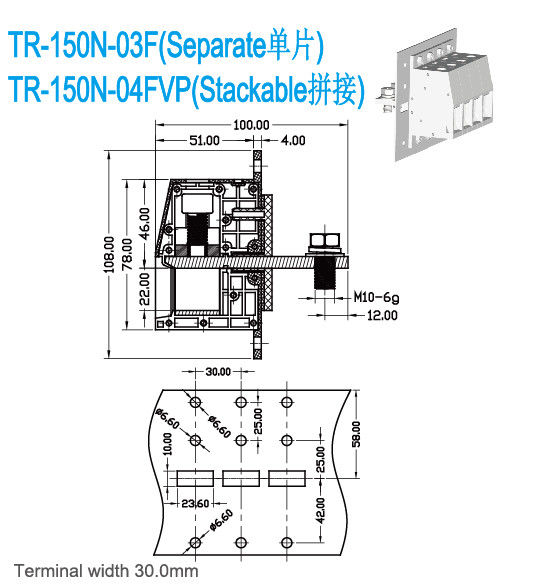

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 600 / 285 | ||
| Wire Range AWG | 2-300kcmil | ||
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 630 / 309 | 800 / 309 | 1000 / 309 |
| Rated Surge Voltage KV | 6 | 6 | 6 |
| Rated Connecting Capacity mm2 | 150 | ||
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Clamp Cage / Plating | Steel / Nickel Plated | ||
| Conduction Board / Plating | Copper / Nickel Plated | ||
| Screw / Plating | Steel / Zinc Plated | ||
| Other Data | |||
| Stripping Length mm | 26 | ||
| Screw / Torque / lbf.in | M10 / 50-60 | ||
Applications:
1.PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
2.Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator and so on.
Competitive Advantage:
- OEM and ODM service
- 10 main series and more than 1000 models for selection
- Stable high quality
- Competitive price
- Good service
